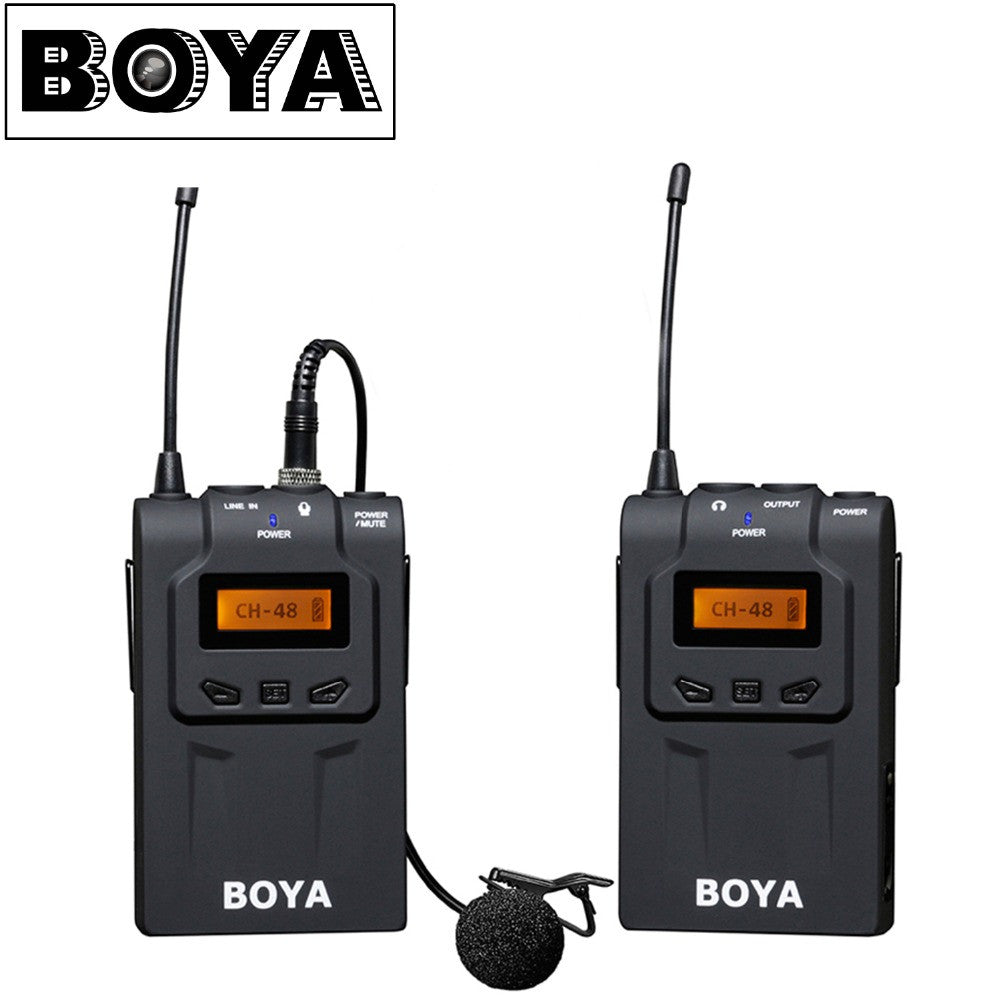

BOYA BY-WM6 UHF Ultra High Frequency 48 Channel Camera Wireless Lavalier Microphone System for Canon DSLR Sony Camcorders

>> Chat us now on facebook
>> Saw cheaper price?
7 day money back, buyer pays return postage

Sealed and Brand New
Warranty: 1 Month Replacement

Overview

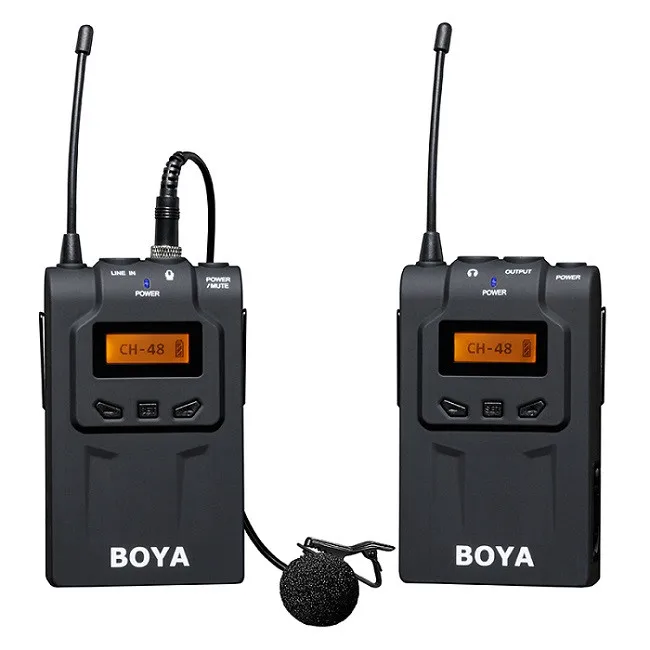

The BOYA BY-WM6 is an UHF wireless microphone system made by ABS environmental plastic material, designed for ENG, EFP DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation.
The BOYA BY-WM6 microphone system can work with Saramonic audio mixer SR-AX100 and SR-PAX2 to make up wonderful recording sound. The Saramonic audio adapter SR-AX100 can work with two pairs of the BOYA BY-WM6 microphone system and Saramonic mixer SR-PAX2 can work for four pairs of the BY-WM6 micorphone system. The audio mixer enables more than one pair microphone system to work at the same time in interviewing and talk show. It allows four men to talk at the same with the Saramonic SR-PAX2 audio adapter and 2 men with Saramonic SR-AX100 audio adapter. Match perfectly in interviewing and small talk show, broadcast.

Features:
Ideal for ENG/EFP, DSLR Video
Compander for High-quality and Clear sound
48 UHF Channels
Mic and Line-in
Easy to use, with display
Selectable Mute function

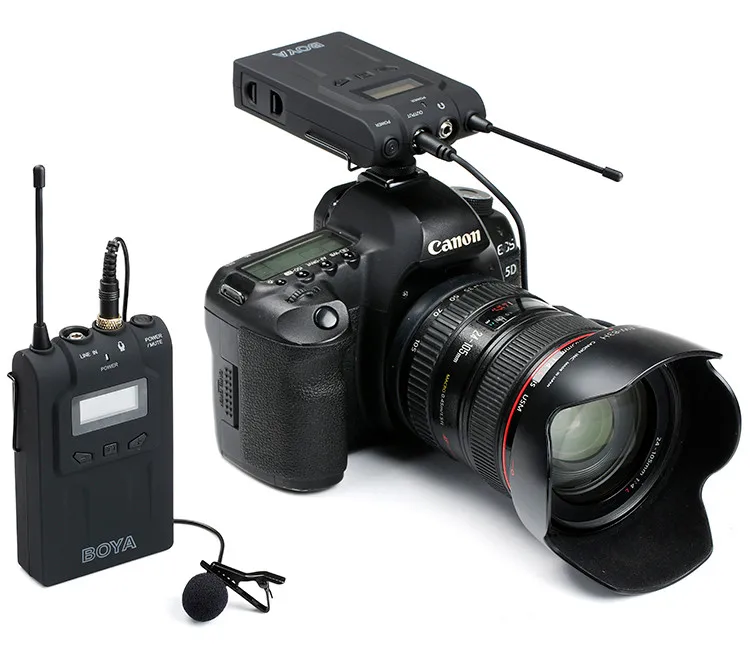

Camera-Mountable Receiver
Monitoring sound by headphone output (Receiver)
Includes Omni-Directional Lavalier Mic
Includes XLR output cable, Stereo mini plug cable
More than 6 Hours Continuous operation
Operation range can reach up to 100m(300')(without obstacle)
Power Supply: Two (2) AA batteries(not included)

System
Oscillator type: PLL Synthesized Control Oscillaton
Carrier Frequency Range: 584 MHz-608 MHz
Channels: 48
Frequency response: 60Hz-15 KHz+/-3 dB
Operation range: 100m (300')(without obstacle)
Operating temperature: 14° F to 122° F (-10°C to +50°C)
Storage temperature: 14° F to 131° F(-10°C to +55°C)

Transmitter
RF output power: 20 mW
Antenna: Flexible
Spurious emission: 250 nW or less
Audio input connector: 3.5mm mini jack
Audio input level: 600 mV-2000 mV
Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
Input frequency range: 20 Hz-20 KHz
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2” x 2.6” x 1.1"
 (10.6 x 6.7 x 2.9 cm)
Weight: 95g (3.4 oz) without batteries

Receiver
Antenna: Flexible
Audio input connector: 3.5mm mini jack
Signal-to-noise ratio: 80 dB
Distortion: 0.8% (-60 dBV, 1 KHz input)
Earphone output level: 60 mW, 32 Ohms/1KHz
Audio output level: 120 mV
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2” x 2.6” x 1.1”
(10.6 x 6.7 x 2.9 cm)
Weight: 98g (3.5 oz) without batteries

Lavalier Microphone
Transducer: Back electret Condenser
Polar pattern: Omni-directional
Frequency Range: 35Hz ~ 18 KHz
Signal / Noise: 74dB SPL
Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz
Connector: 3.5mm locking mini plus
Length: 1.2m (4')

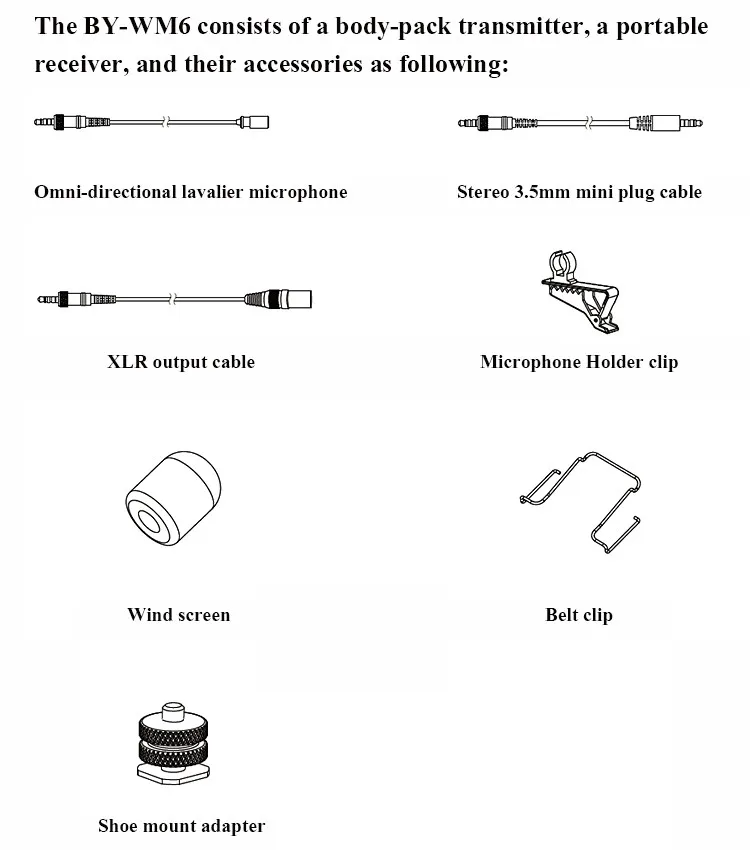

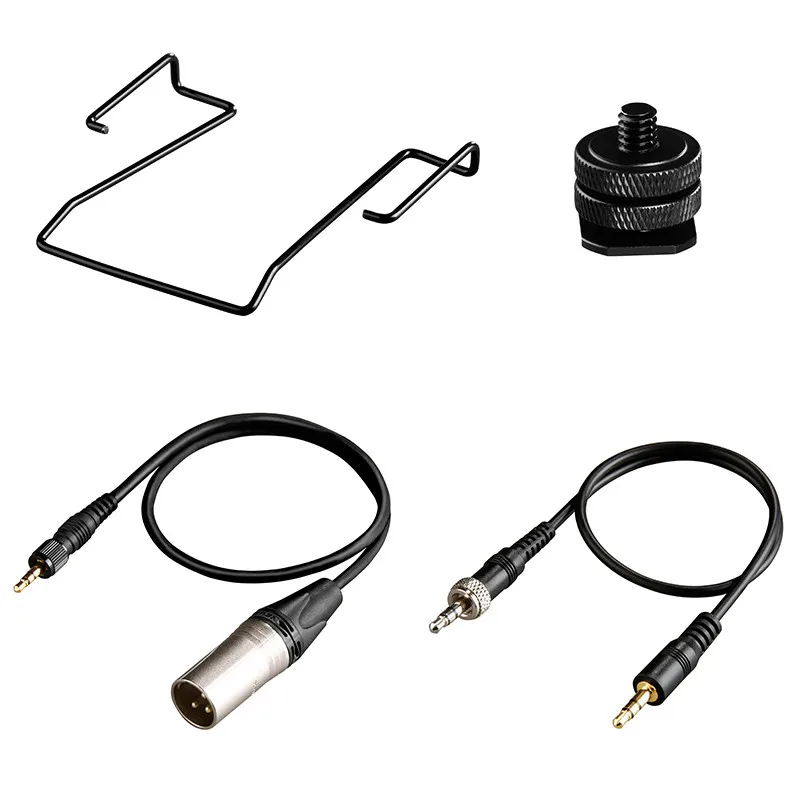

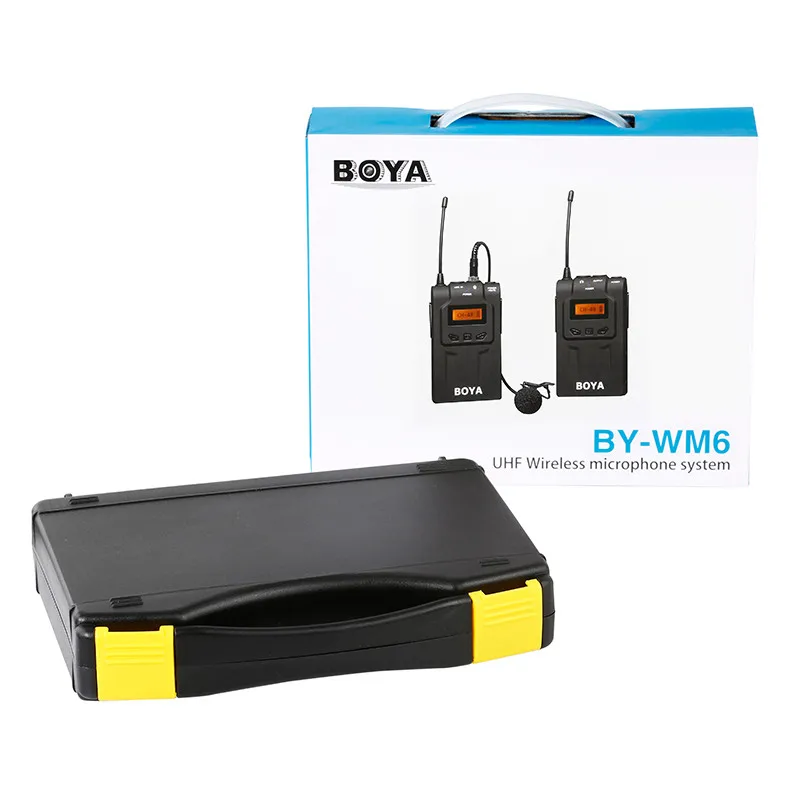

Package List
1 * Omni-directional lavalier microphone
1 * Stereo 3.5mm mini plug cable
1 * XLR output cable
1 * Microphone Holder clip
1 * Wind screen
1 * Belt clip
1 * Shoe mount adapter

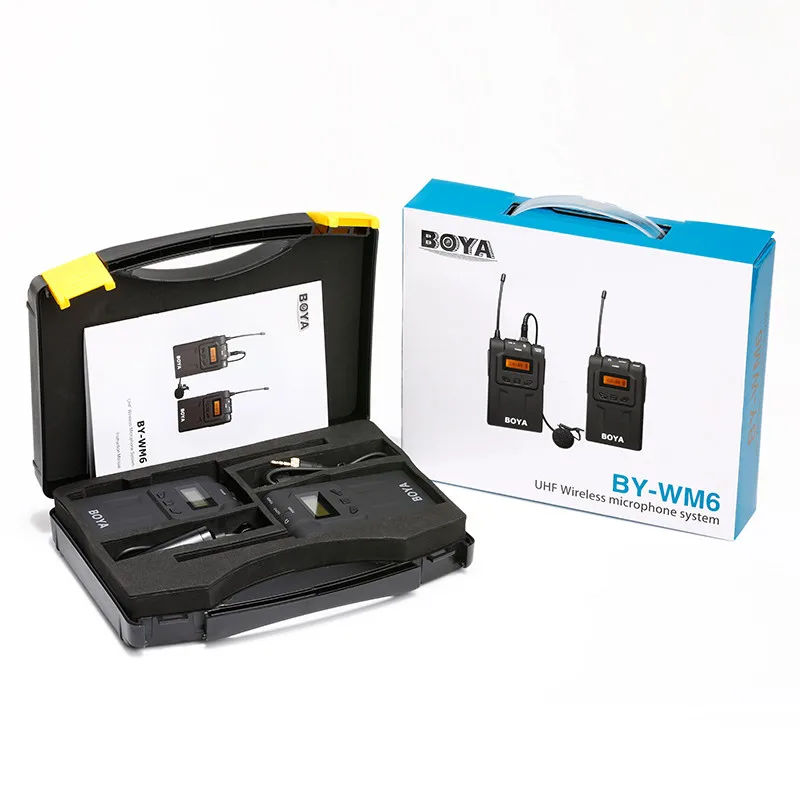

1 * Portable Solid Box for Microphone (Free Gift)

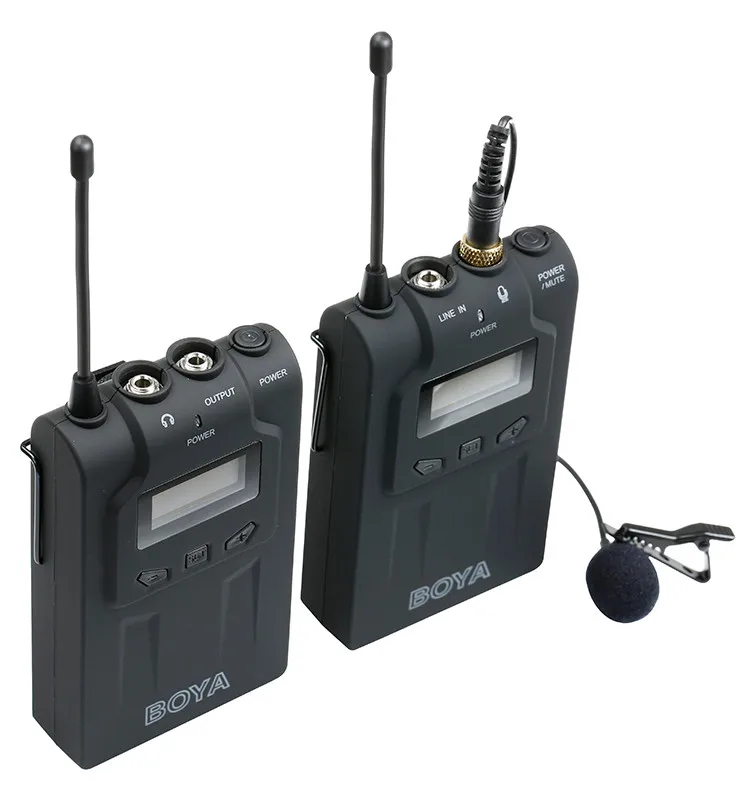

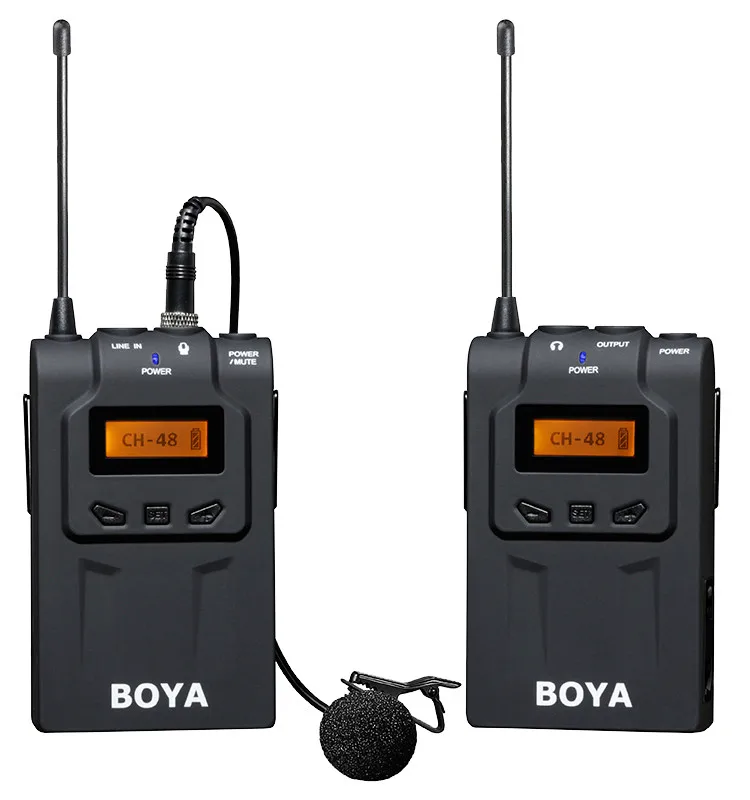

Components of the microphone as follow:
1. Antenna
2. Monitor Connector (3.5mm diameter stereo mini jack)
To monitor the receiver output, connect the headphones to this connector.
Notes: Do not connect headphones with a monaural mini jack. This may lead to short-circuiting of the headphone output, resulting in distorted sound output.
3. OUTPUT (audio output) connector (3.5mm diameter stereo mini jack)
Connect one end of the supplied stereo 3.5mm mini plug-BMP conversion or XLR-BMP conversion output cable here, and the other end to the microphone input on a DSLR camera, camcorder, mixer or amplifier etc.
4. Power
Press this button to turn the receiver ON or OFF.
5. Power LED
1) The power LED glows blue when the unit is on.
2) The power LED glows red when low power
6. CH (Channel) indication
Shows the transmission channel.
7. Battery indication
Shows the battery condition
Note: When the battery power icon is empty and blinking, the batteries are almost out of power, and you will need out of power, and you will need.
8. + (+ selection)/ – (- selection) buttons
Press these buttons to set the transmission channel, or attenuation level of the input signal.
9. SET button
Press to change and enter display parameters.
10. Belt clip
11. Battery compartment
Accommodates two AA batteries.
12. Shoe mount adapter

Fulfilling Various Needs

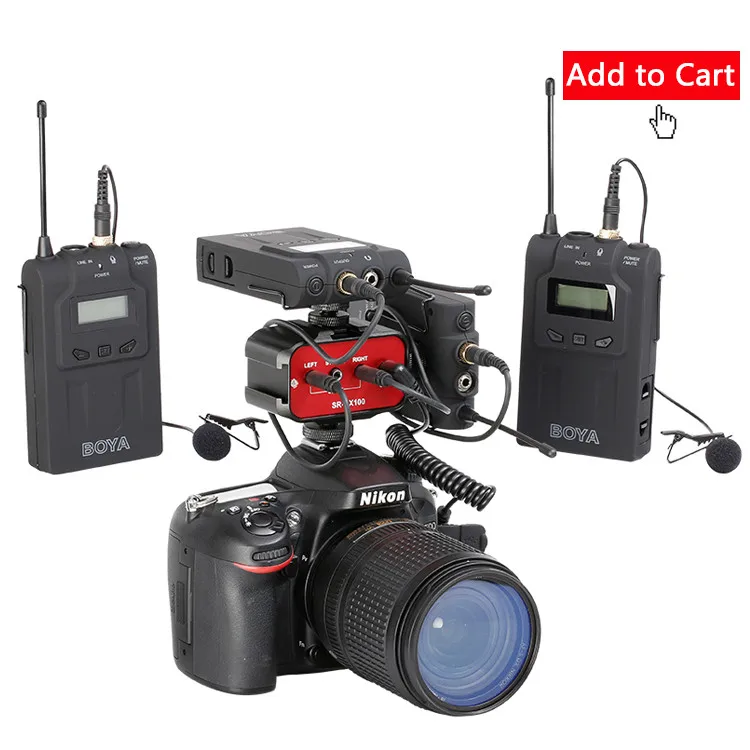

The BOYA BY-WM6 microphone system can work with Saramonic audio mixer SR-AX100 and SR-PAX2 to make up wonderful recording sound. The Saramonic audio adapter SR-AX100 can work with two pairs of the BOYA BY-WM6 microphone system and Saramonic mixer SR-PAX2 can work for four pairs of the BY-WM6 micorphone system. The audio mixer enables more than one pair microphone system to work at the same time in interviewing and talk show. It allows four men to talk at the same with the Saramonic SR-PAX2 audio adapter and 2 men with Saramonic SR-AX100 audio adapter. The configuration can turn the mono into stereo voice, it combines two human beings' sound into your camera at the same time with a Saramonic audio mixer SR-AX100 and four human beings' sound into your camera with a Saramonic audio adpter SR-PAX2. Match and work perfectly in interviewing, small talk show, broadcast, family party and micro movie. (see the configuration images below)
